The Redrock slurry tanker range is built to the highest quality. Rolled from 6mm steel, all the tanks are welded both internally and externally and include 4” x 2” channel rings welded inside the tank for extra strength and a longer service life. The Redrock body, wheel arches, supports and draw-bar are designed and manufactured to the most exacting standards to maintain rigidity, reliability and road-worthiness year after year.

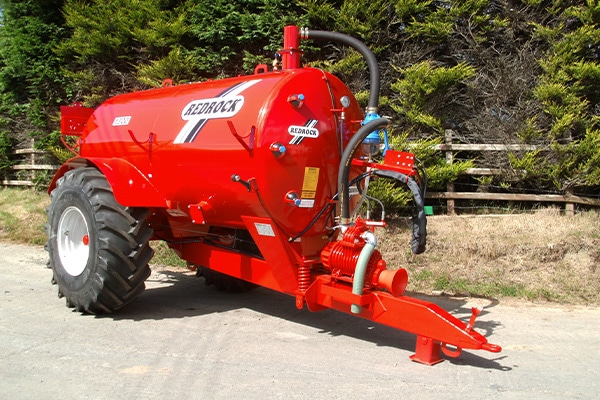

Recessed Single Axle
Description
Specification:
| Specification | 1800g | 2050g | 2500g | 3000g |
|---|---|---|---|---|
| Litre | 8150 | 9300 | 11350 | 11360 |
| Wheel Size | 620/75 R26 (23.1 X 26) |
750/70 R26 (28.1 X 26) |
800/65 R32 (30.5 R32) |
800/65 R32 (30.5 R32) |
| Overall width (mm) | 2550 | 2600 | 2600 | 2600 |
| Overall Length (mm) | 6700 | 7050 | 7300 | 7300 |
| Barrel Diameter (mm) | 1700 | 1700 | 1800 | 2000 |
| Pump Size (Litre / min) | 9000 | 11000 | 11000 | 13850 |
